| SNMP/TRMS |
제품소개 _ SNMP/TRMS |
 |

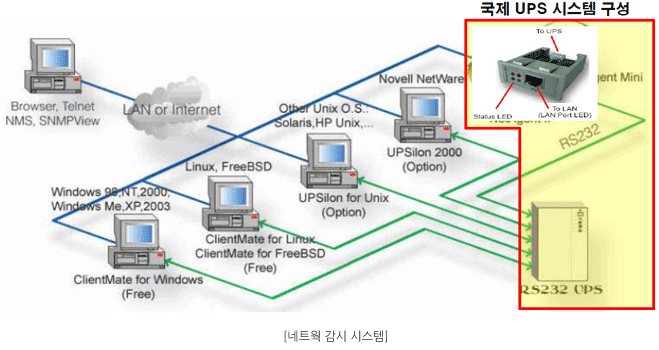

네트웍 감시 시스템 구성 |
|

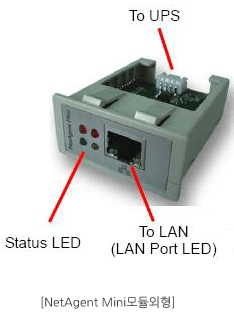

NetAgent MiNi 모듈 |
|
| Light signal application of NetAgent Mini-Status LED |
| Light color |
Signal definition |
Condition description |
| Green |
Rower state |
On : Normal power |
| Red |
Connection State with UPS |
Flash : no connection with UPS |
| Orange |
Correspondence state |
Light flashes when Netagent transmits command to UPS |
| Light signal application of NetAgent Mini-Status LED |
| Light color |
Condition description |
| Green |
On : Internet correspond speed is 100M
Flash : Data transmmiting |
| Yellow |
On : Internet correspond speed is 10M
Flash : Data transmmiting |
|
|
|
|
